| Product Model | 1:8 Beast PRO SS150A | |||
| Model Number | 4215032 | |||
| Type | Brushed / Brushless | Brushless | ||
| High Voltage / Normal | Normal | |||
| Specifications | Continuous Current | 150A | ||
| Burst Current(10s) | 900A | |||
| Battery Cell | 6.0V/7.4V Adjustable/5A | |||
| BEC output | 5-18NC/2-6Lipo | |||

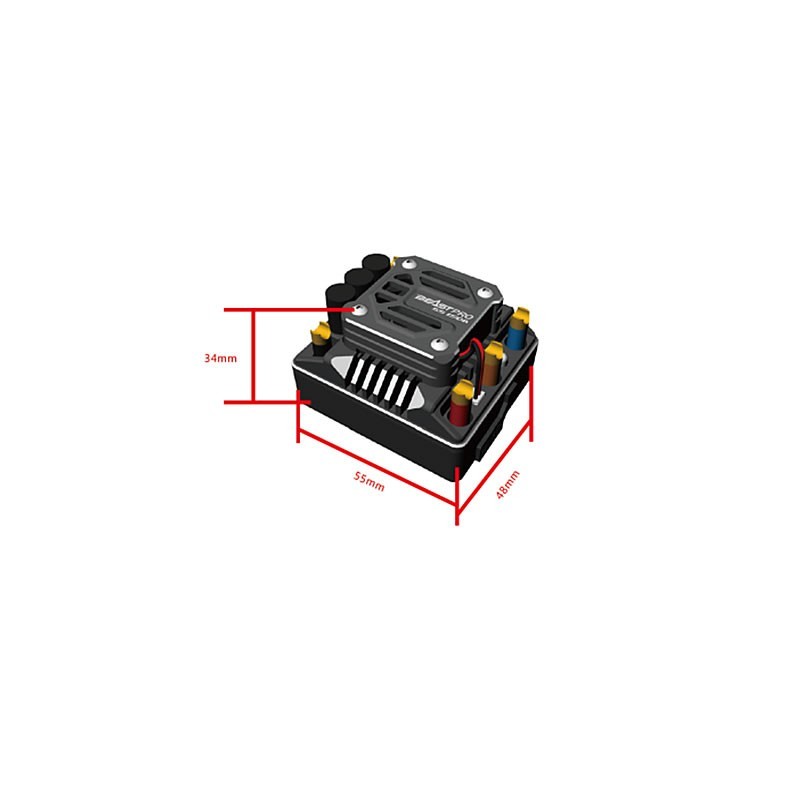

| Size | Width | 48mm | ||
| Length | 55mm | |||
| Hight | 37mm | |||
| Weight | 182g | |||
| Wires & Connectors | Power Wires | 5.0Male6*22Gold | ||
| Motor Wires | 5.0Male6*22Gold | |||
| Signal Wires | （Black/Red/White）30C，300mm/PH1.5 3P to JR3P | |||
| Signal Wires2 | （Black/Red/White）30C，90mm | |||
| Power Plug（ random distribution）10＃AWG，with 5.0mm Goold Connector，160mm-Black/Red | ||||
| Motor Wire（ random distribution）10＃AWG，with 5.0mm Goold Connector，160mm-Black | ||||
| Power Plug(Yes/No) | no | |||
| ESC Programing via | Transmitter | |||
| Jumper Program Card | ||||
| LED Program Card | yes | |||
| LCD Program Card | yes | |||
| WiFi Program Card | yes | |||
| USB interface | yes | |||
| Firmware | Firmware Upgrade | yes | ||
| Section | Programmable Item | Programmable Value | ||||||||||||||||
| General Setting | Running Mode | Forward/Brake | Forward/Brake/Reverse | Forward/Reverse | ||||||||||||||
| Low Voltage Cutoff | Disable | Auto（3.0V/Cell) | 3.0-11.1V (step 0.1V) |
|||||||||||||||
| ESC Overheat Protection | 95℃ | 105℃ | 130℃ | Disable | ||||||||||||||
| Motor Rotation | Normal | Reverse | ||||||||||||||||
| Race Mode | Modify | Stock | ||||||||||||||||
| Dead Band | 4%-15%（step 1%） | |||||||||||||||||
| BEC Output | 6.0V | 7.4V | ||||||||||||||||
| Throttle Control | IP Limiter | 1-30（step 1） | ||||||||||||||||
| Throttle Rate | 1-30（step 1） | |||||||||||||||||
| Drive Freq | 1K | 2K | 4K | 8K | 16K | |||||||||||||
| Rpm Lock | 1%-100%（step 1%） | |||||||||||||||||
| Throttle Curve | Linear | Custom | ||||||||||||||||
| Brake Control | Initial Brake | 1%-20%（step 1%） | ||||||||||||||||
| Drag Brake | 0%-100%（step 1%） | |||||||||||||||||
| Brake Force | 0% | 12.5% | 25% | 37.5% | 50% | 62.5% | 75% | 87.5% | 100% | |||||||||
| I-Brake Response | 1-20（step 1） | |||||||||||||||||
| Brake Rate | 1-20（step 1） | |||||||||||||||||
| Brake Freq | 1K | 2K | 4K | 8K | 16K | |||||||||||||
| Brake Curve | Linear | Custom | ||||||||||||||||
| Timing | Boost | Boost Timing | 0-64°(Step 1°) | |||||||||||||||
| Boost Trigger Level | 1-50（step 1） | |||||||||||||||||
| Boost Trigger Rate | 1-10（step 1） | |||||||||||||||||
| Turbo | Turbo Timing | 0-64°(Step 1°) | ||||||||||||||||
| Start RPM | 8000-50000rpm (Step 1000) |
|||||||||||||||||
| Turbo Delay | Instant | 0.05S | 0.1S | 0.15S | 0.2S | 0.25S | 0.3S | 0.35S | 0.4S | 0.45S | 0.5S | 0.6S | 0.7S | 0.8S | 0.9S | 1.0S | ||
| Activation Method | Full TH | RPM | Full TH+RPM | |||||||||||||||
| Turbo On Rate | 1-10（step 1） | |||||||||||||||||
| Turbo Off Rate | Instant | 1-10（step 1） | ||||||||||||||||
